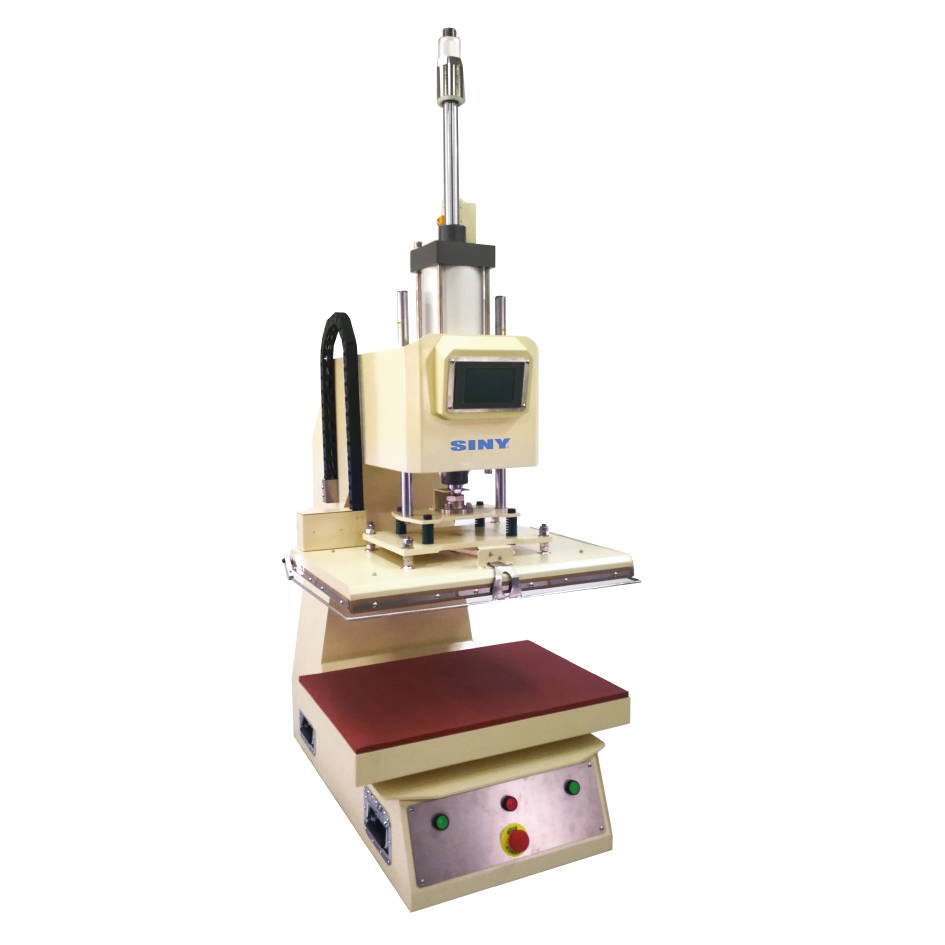

SLC-20L 平面热压机
长按识别看视频
- 产品参数
长按识别看视频
平面热压机
Pneumatic Flat Press Machine
SLC-20L
● 标配上下发热、可选择使用上下加热或单热
● 底面加热设计，适合制衣，鞋，箱包，内衣等行业，用途更广泛
● 温度、时间独立可调整，自动恒温温度更精准
● 弹簧自动调整平衡，确保压力平均
● 可选配下工作台吸风
● PLC编程控制系统，操作简单机器更稳定
● Standard self heating upper and lower plates with independent heat on/off control.
● Double heating design suitable for manufacturing of clothes, shoes, luggage box, underwear etc., provides a wide range of usage.
● Independent heat and timing control with automatic temperature constant control keeps the precise temperature.
● Self balance regulating springs give a more even working pressure.
● Optional suction lower platform can build-in when order.
● PLC programming control system makes operation more easy and stable.
型号 Model | SLC-20L |
电 压 Power Supply | AC 220V 50/60Hz |
气压 Air Pressure | 0.3-0.5MPa. |
功率 Power Consumption | 4200W |
最高设定温度 Max. Setting Temp. | 250 C° |
加压时间 Press Time | 1-999s |
发热板面积 Heating Plate Area | 600(L)*400(W)mm |
机器尺寸 Dimension | 680(L)*800(W)*1580(H)mm |
净重 Net Weight | 156kg |
